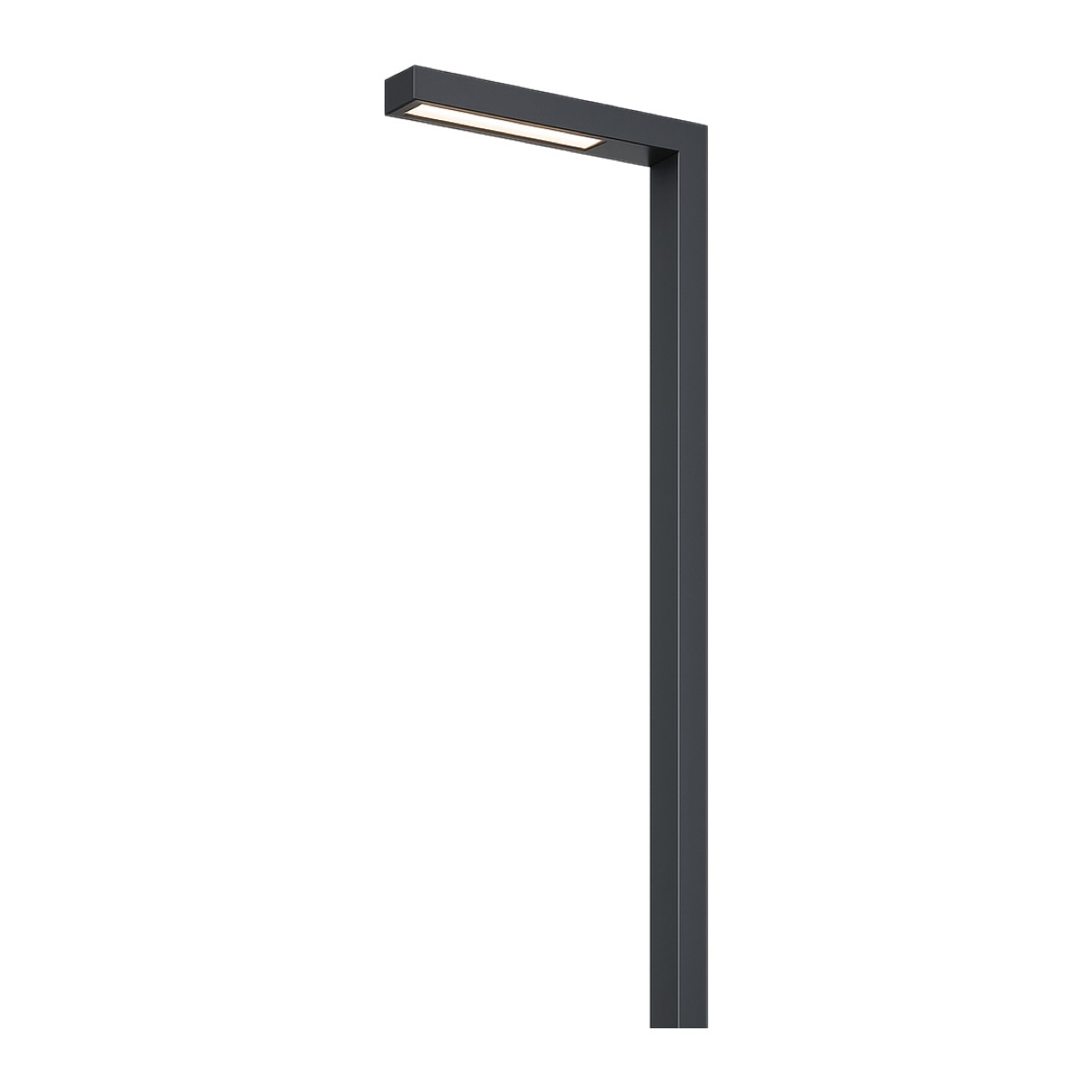

ILS-N-CL002 Wall Type

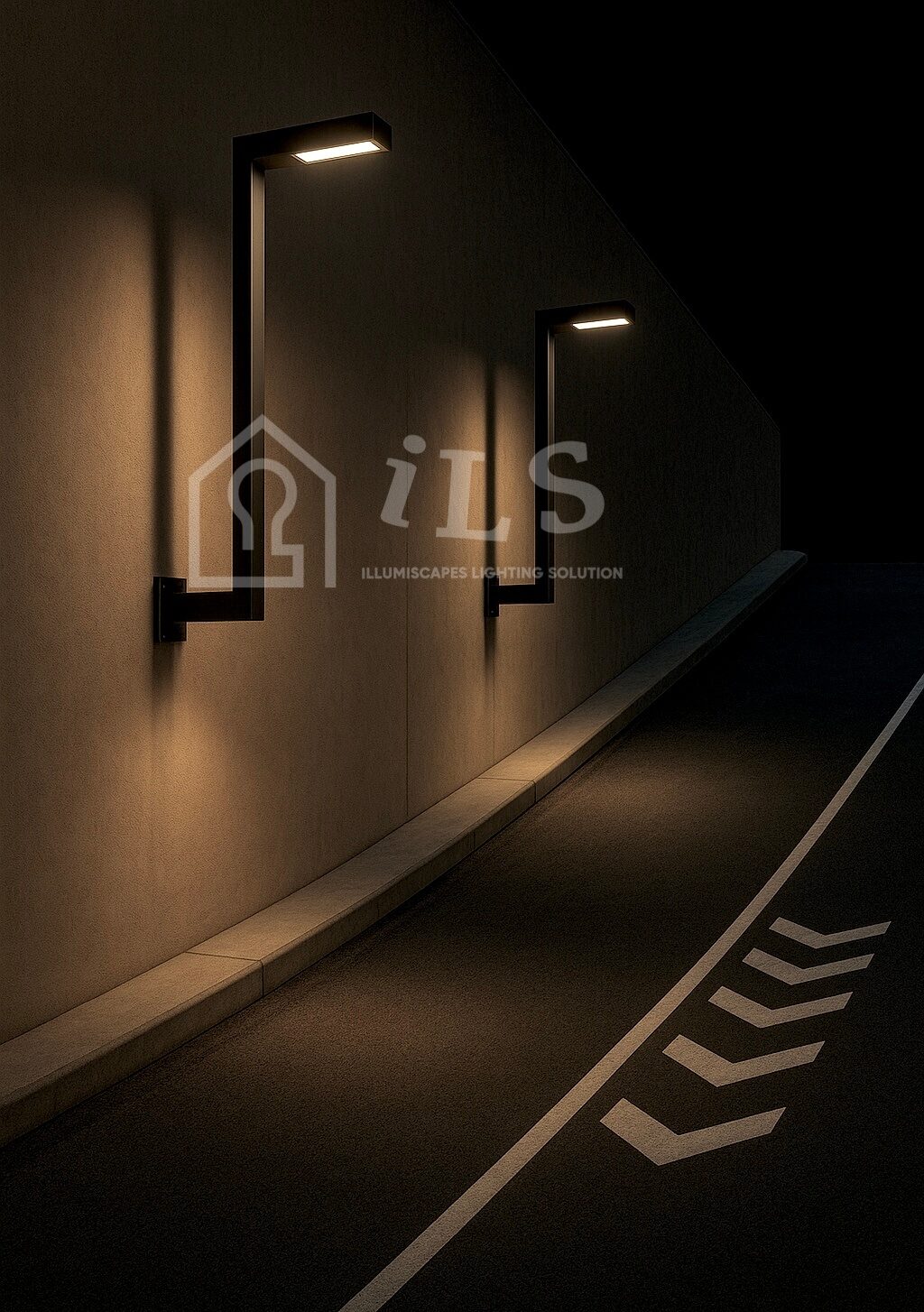

Introducing ILS Wall-Mounted Area Light — engineered for projects where a low parapet wall is the only available structure, yet a tall mounting height with wide light distribution is still required. By elevating the luminaire from the wall instead of the ground, it delivers the reach and performance of a pole light without needing floor space, providing clean, effective illumination for driveways, car parks, and perimeter pathways.
Technical Specifications
Pole TypeHDG Lamp Pole
Height (m)2 – 12 m (customizable)
Wall Thickness (mm)3 – 8 mm
MaterialMild Steel (Q235)
Surface TreatmentHot Dip Galvanized, Powder Coated
Color FinishOptional Powder Coating (RAL color available)
Base PlateCustomized
Door HatchRectangular with lock, size customizable
Bracket / Arm TypeSingle Arm
Installation TypeFlange mounted
ApplicationOutdoor, Garden, Pathway, Facade
Light SourceLED Module
LED DriverRemote
Color Temperature (K)3000K-6500K
Color OptionsMono
Color Rendering Index (CRI)RA>80
Luminous Efficacy (lm/W)110lm/W
Power (W)40W-100W
Input Voltage (V)110-220V
Power Factor0.95
Surge Protective DeviceUpon Request
IP RatingIP65
Control ModeAuto
Suggested Lamp Spacing25 mtr
AccessoriesChemical Bolt, Nut, and Washer.
Warranty2 Years
Required Concrete StumpNo
